Product Description


Features:

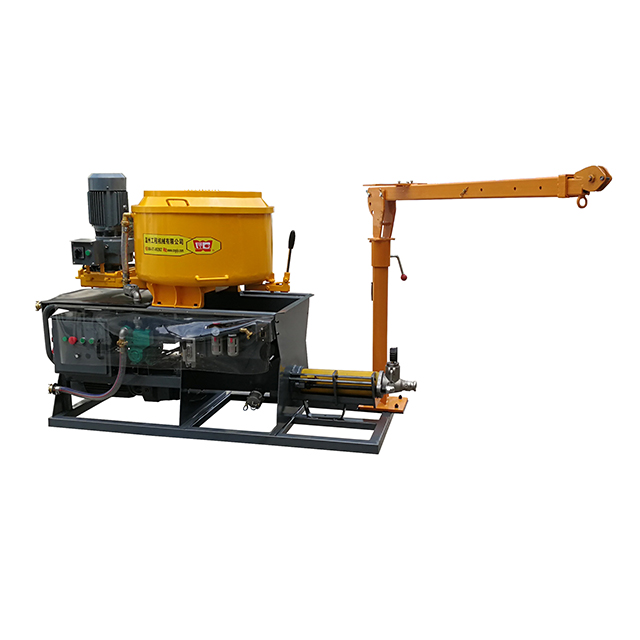

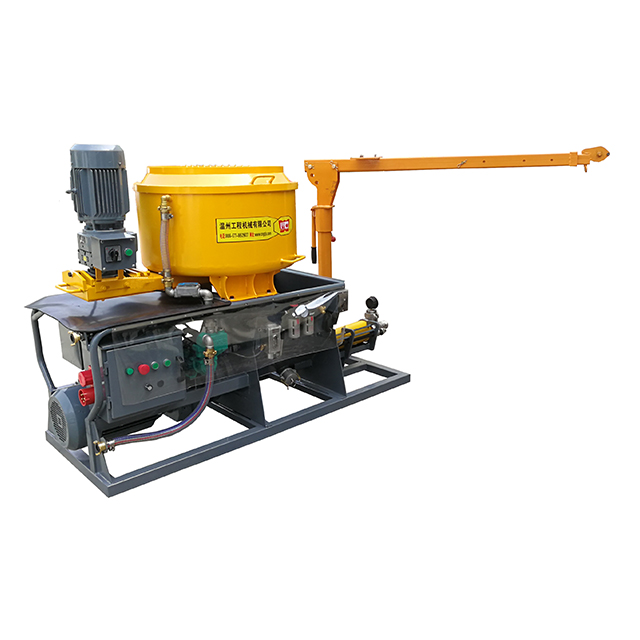

GXL series vehicle-mounted inspection well and drainage pipe lining spraying machine: The mixed mortar is applied with a vertical mixer. The mixing body of the mixer is equipped with a combination of inwardly curved mixing blades, so that the mixed mortar can produce strong radial flow and axial flow to form multiple flow directions. The staggered circulating vortex results in a large contact surface between the mixed components, a reduced size of the slurry micelle, and a significant improvement in the aggregate wrapping properties, which is today's advanced technology.
The lower mortar pump has high pressure and long delivery distance. The disassembly and assembly slide of the screw pump rotor and stator is set up at the construction site for immediate on-site replacement, which solves the problem of updating the screw pump during operation. The screw pump operation is equipped with remote control and near-control switchable operating mechanisms.
Set up an automatic, precise and controllable metering water supply system with the functions of adjusting the rotary spray speed, pumped mortar displacement, pumping pressure, and spray thickness.
Set up a unique screw pump anti-wear limit control mechanism to improve the service life of the screw pump.
The length of the random boom can be retracted, and the working angle can be selected arbitrarily. It is suitable for supporting vans that are allowed to pass in urban areas. It takes up little space and does not require complicated installation.
The product is divided into pneumatic type and electric type. In terms of product structure, it is divided into models with boom and rotary spray frame. Users can choose according to the project environment and needs.

Technical Parameters:


Power supply

380V 50HZ

Workload

20-80L/min

Delivery pressure

30bar

Pumping distance

100m

Pumping height

40m

Main motor power

7.5 KW

Stirring motor power

3KW

Mixing capacity

100L

Length

2100mm

Width

680mm

High

1135mm

Weight

420KG
