Product Description
Features:

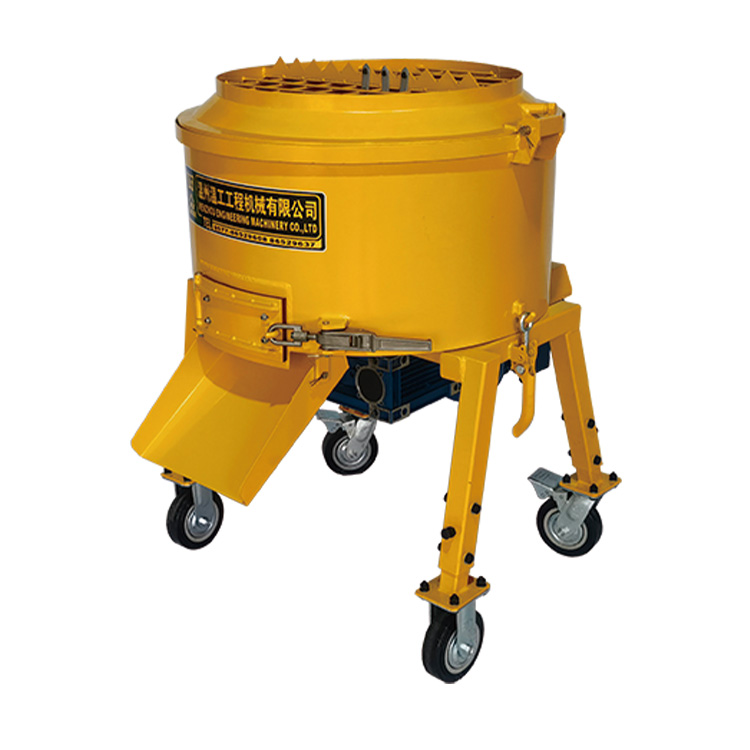

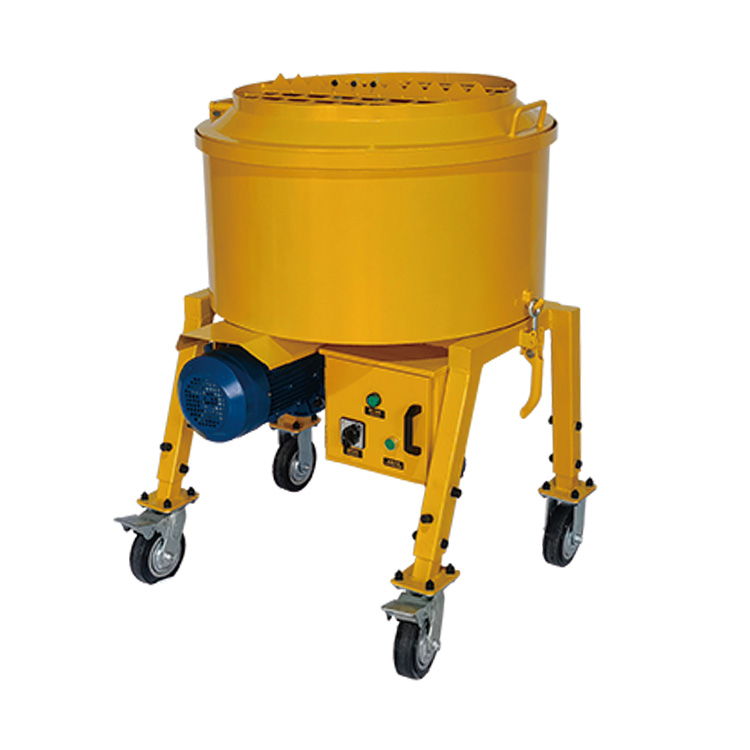

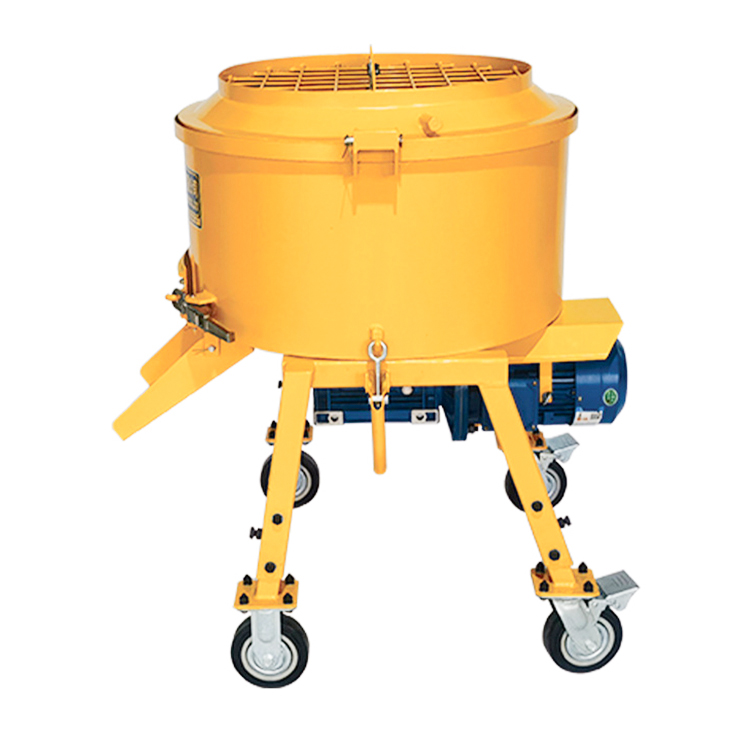

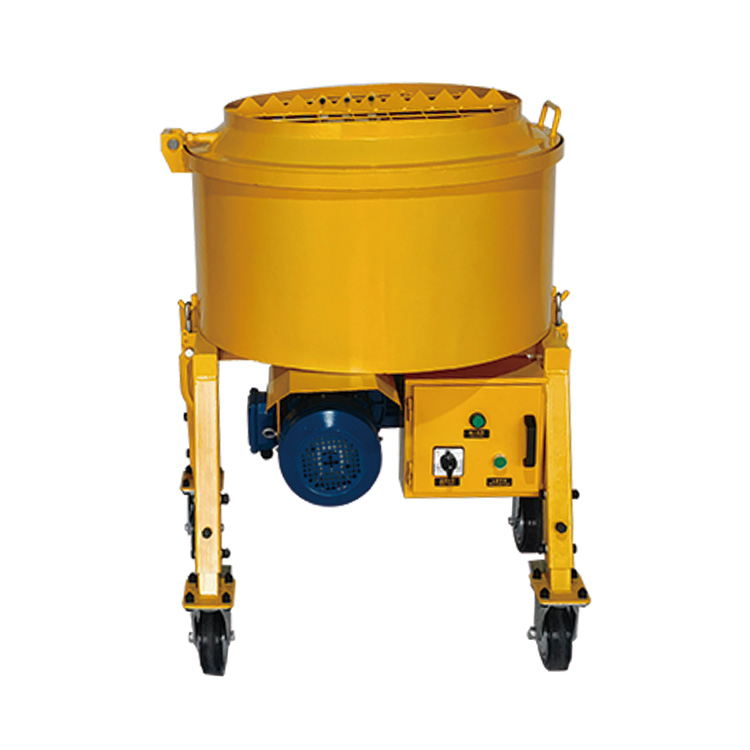

SJY series forced mixer introduces the outstanding mixing technology of IMERGROOP from Italy. The vertical-axis mixer is composed of a large number of cross-inwardly curved mixing blades. During operation, the mixed materials are forced to be squeezed and turned over, and the mixing trajectory covers a wide range. Due to the intensive and rapid continuous mixing, the mixed materials are highly uniform and equipped with an intelligent water supply system, a discharging mechanism that combines an electronically controlled unloading door and a manual unloading door, and casters that can be fixed or moved to make operation more convenient. , the whole machine is equipped with a height lifting frame, and the discharge port is equipped with a guide trough that can be rotated and adjusted in height, which makes the machine have a wider range of use and realizes feeding materials far away from the machine and making it easy to Remove the guide chute and place the material directly at the discharge port.
Technical Parameters:
Power supply
|
380V 50HZ
|
Structure type
|
Vertical forced
|
Stirring power
|
3KW
|
Feed volume
|
160L
|
Discharge volume
|
100L
|
Number of stirring arms
|
5
|
Total Weight
|
160KG
|
Size
|
940*960*1240mm
|
|
|
