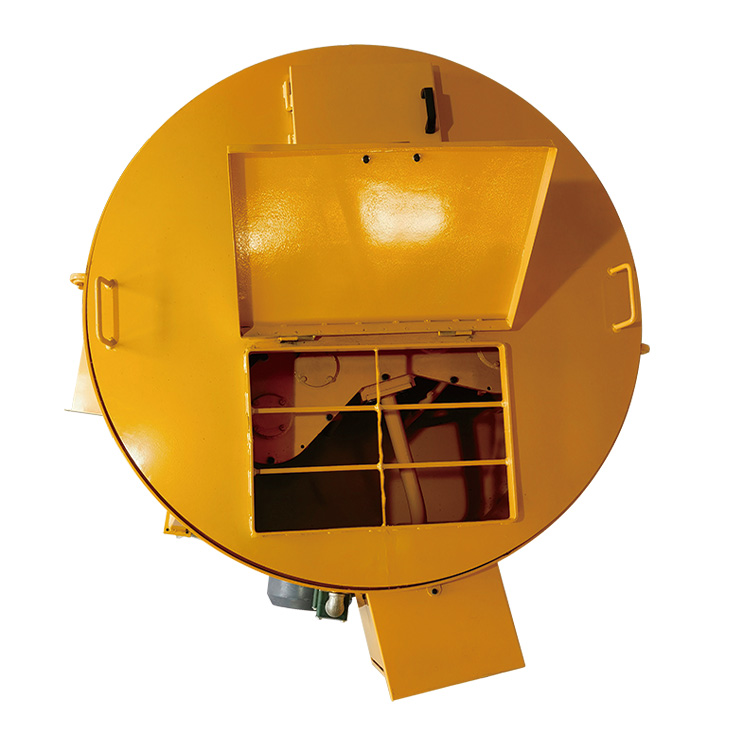

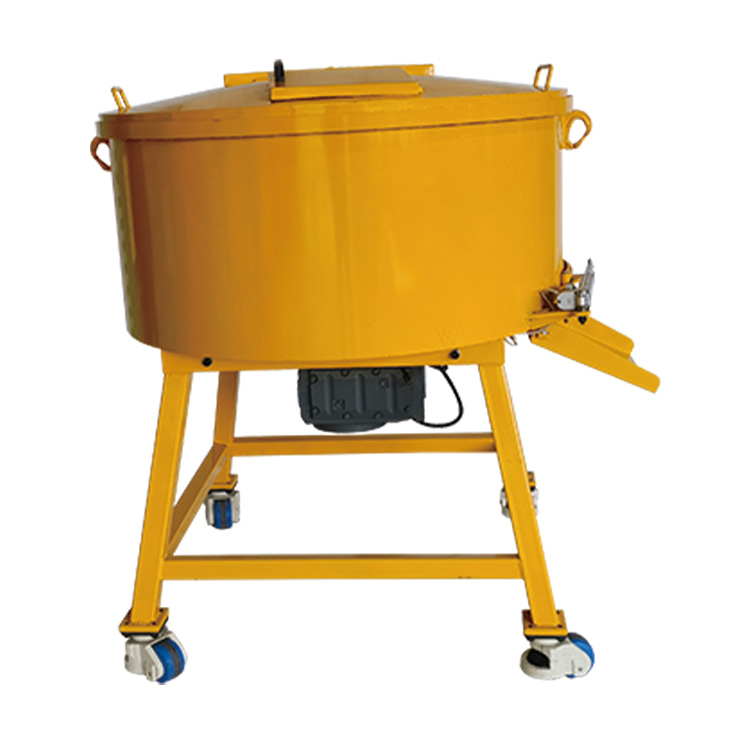

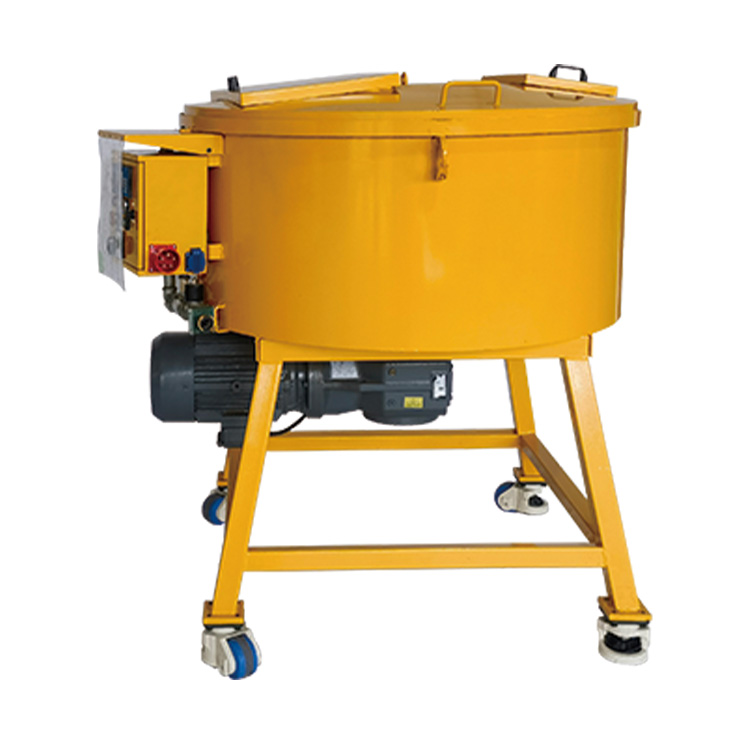

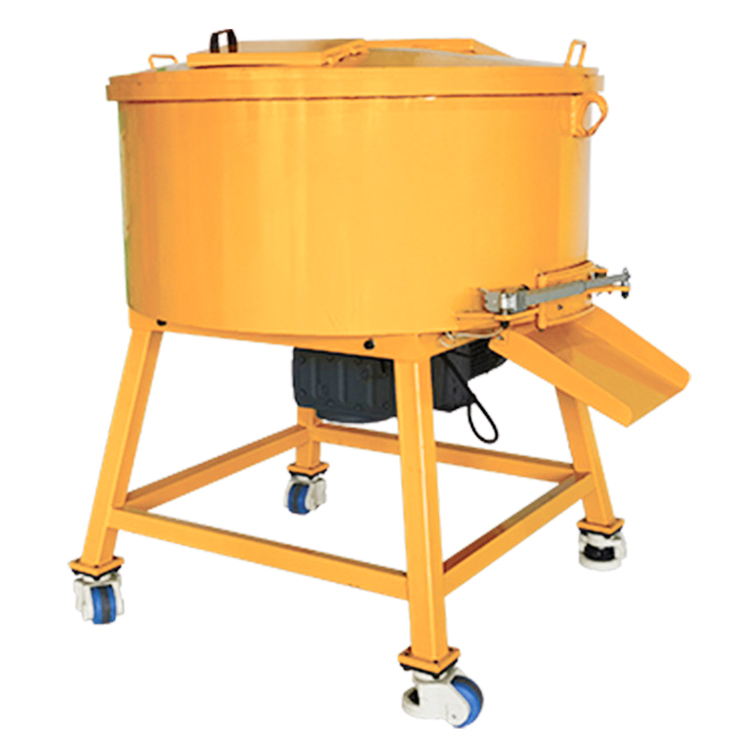

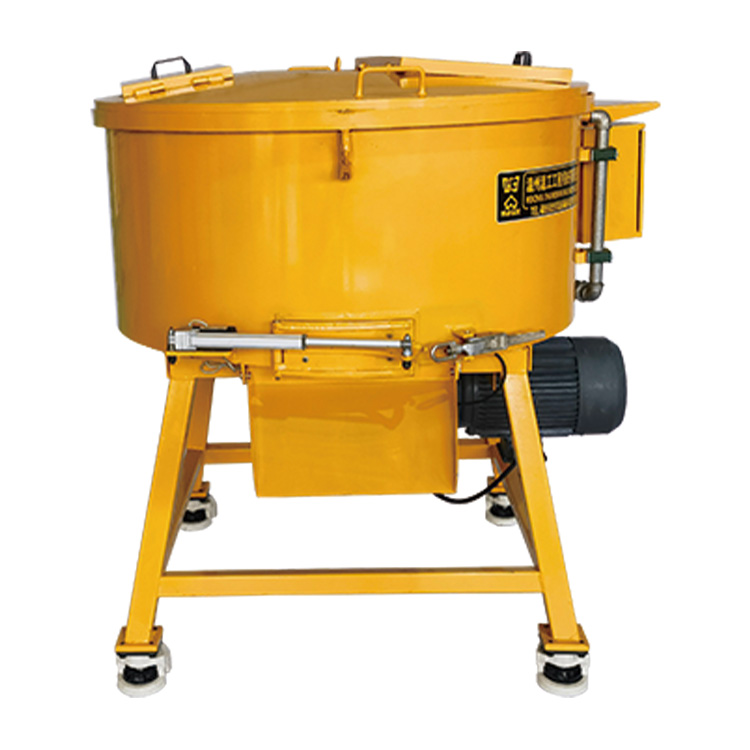

BXA type/BXB type/BXC type lightweight planetary UHPC, ECC mixer
Product Description
Features:
Light planetary UHPC and ECC mixers are divided into BXA mobile single planetary mixers, BXB mobile double planetary mixers, and BXC mobile three planetary mixers, all of which have unique and efficient functions. To adapt to the mixing of different special materials.
The mixing body is made of an inner plate made of high-strength wear-resistant material. It has built-in mixing arms that revolve around the central axis of the mixing body in different directions and multiple dimensions. At the same time, it performs high-speed rotation and rotation around the central axis of its own components at different speeds. The planetary stirring paddle that revolves on the central axis of the mixing body makes the moving trajectories of the mixing materials intersect in complex ways, generating multi-dimensional powerful radial flow, axial flow and moving cross-circulating vortices, which subject the materials to strong shearing, dispersion and rubbing. , the contact surface of the mixed components is large, the size of the slurry micelles is reduced, and the materials are fully, evenly and quickly mixed through effective mixing in the shortest time.
Light planetary UHPC and ECC mixers are suitable for mixing high viscosity and high solidity materials, and are suitable for the preparation of ultra-high performance and high ductility concrete, including various mixing materials that require sufficient and rapid mixing that are difficult to overcome with other mixing equipment. All can be solved. What's more, there are no limitations on the types of mixing materials, and it is capable of obtaining high-quality, high-demand, low-cost mixtures in various fields.
Light planetary UHPC and ECC mixers are equipped with intelligent metering and water supply systems, a discharging mechanism that combines an electronically controlled discharging door and a manual discharging door, and a wheel set that can be moved or fixed, and can be placed nearby any operating point on the construction site. It can also be used as a fixed mixing station building inside the building. Compared with other types of planetary mixers, maintenance and cleaning are easier and simpler, extremely convenient, saving labor and time.
Light planetary UHPC and ECC mixers are equipped with different mixing capacities of 100-1000L to adapt to a wide range of projects currently involving PC components, high-speed rail projects, wind power projects, road and bridge projects, tunnel projects, water conservancy projects, underground pipe corridors, and landscape projects. It can be operated off-site and is suitable for mobile use on the ground, on the floor and in the laboratory. With the development of ultra-high performance, high ductility concrete technology. With the continuous development of new concrete materials and products, mixing equipment is required to be lightweight, with high efficiency and low cost becoming increasingly prominent. Therefore, lightweight planetary UHPC and ECC mixers have many advantages in the application of high viscosity, high solidification, and polymer fiber mortars. plays an important role in construction.
Technical Parameters:
|
model |
BXA100 |
BXA200 |
BXA400 |
BXB200 |
BXB400 |
BXC400 |
BXB1000 |
|
Power supply |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
|
structure type |
Single planetary |
Single planetary |
Single planetary |
Double planetary |
Double planetary |
Three-planet type |
Double planetary |
|
Stirring power |
4KW |
7.5KW |
9KW |
7.5KW |
9KW |
9KW |
18.5KW |
|
Feed volume |
160L |
200L |
400L |
200L |
400L |
400L |
1000L |
|
Discharge volume |
100L |
130L |
260L |
130L |
260L |
260L |
500L |
|
Number of stirring planets |
1*3 |
1*4 |
1*4 |
2*3 |
2*3 |
3*3 |
2*2 |
|
Number of stirring arms |
2 |
2 |
2 |
2 |
2 |
3 |
2 |
|
Size |
940*960*1240mm |
1130*960*1500mm |
1430*1340*1500mm |
1130*960*1500mm |
1430*1340*1500mm |
1430*1340*1500mm |
2200*2130*1460mm |
|
Weight |
150KG |
350KG |
500KG |
350KG |
500KG |
500KG |
