Features:

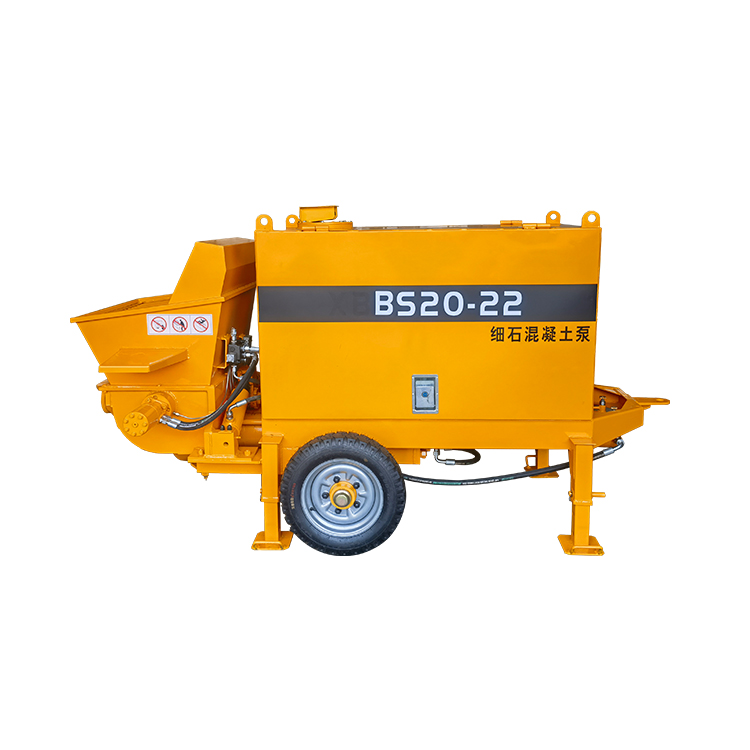

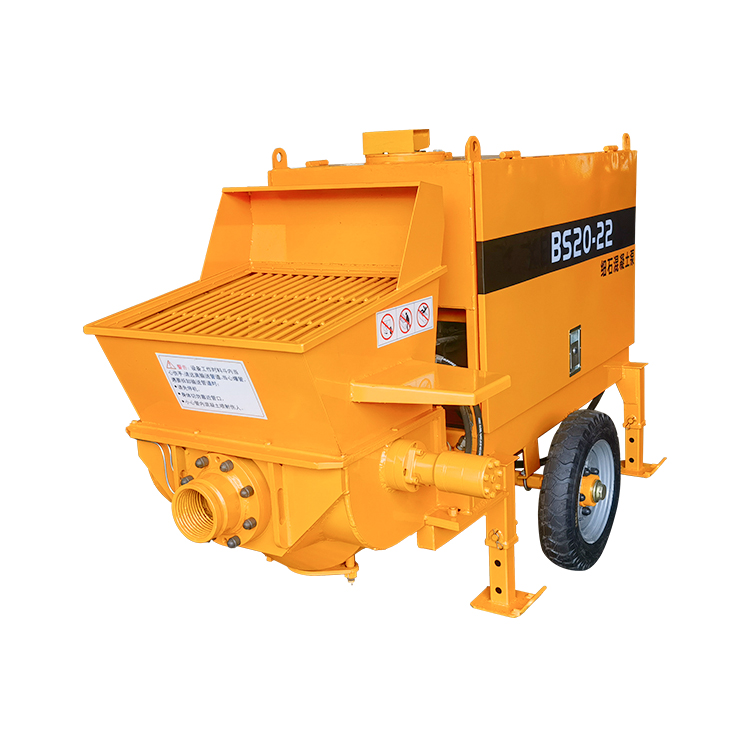

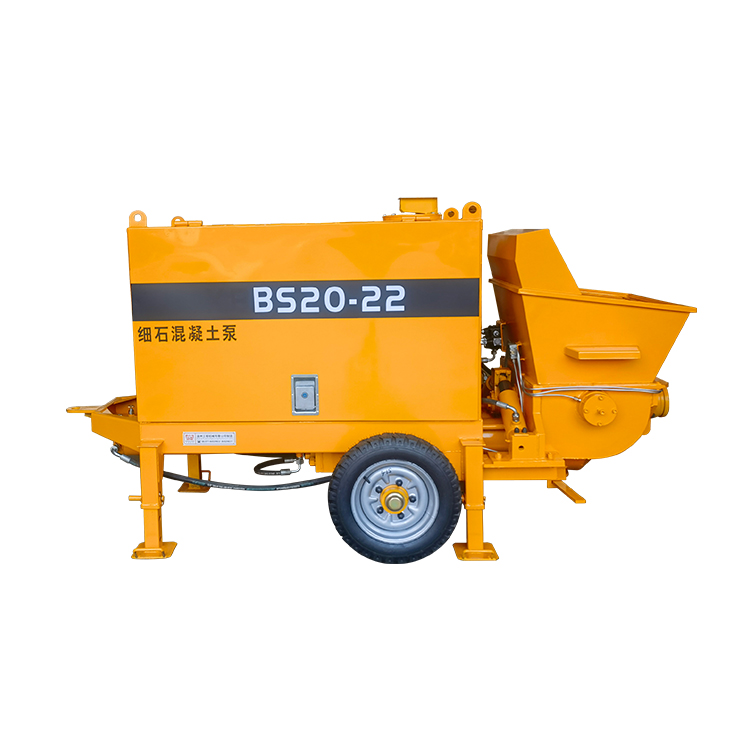

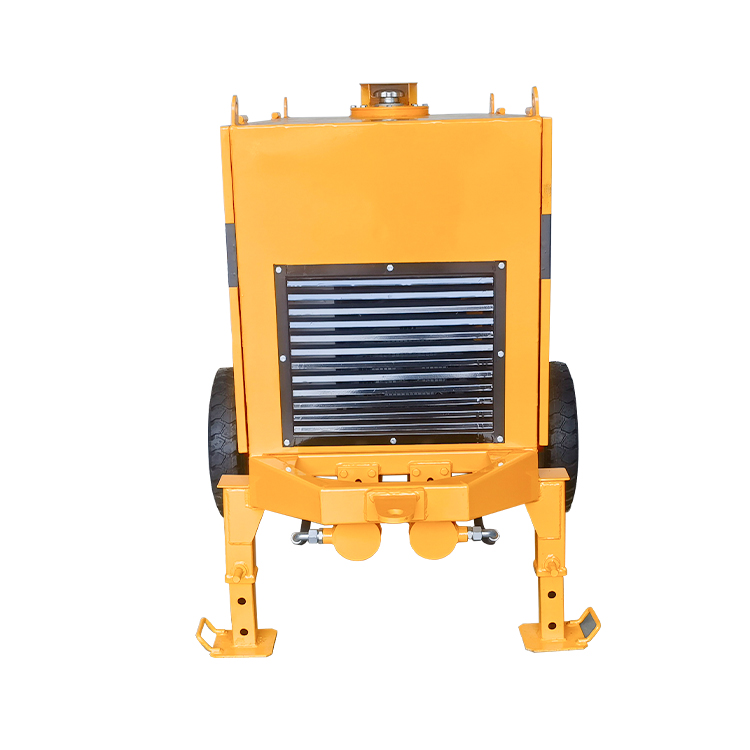

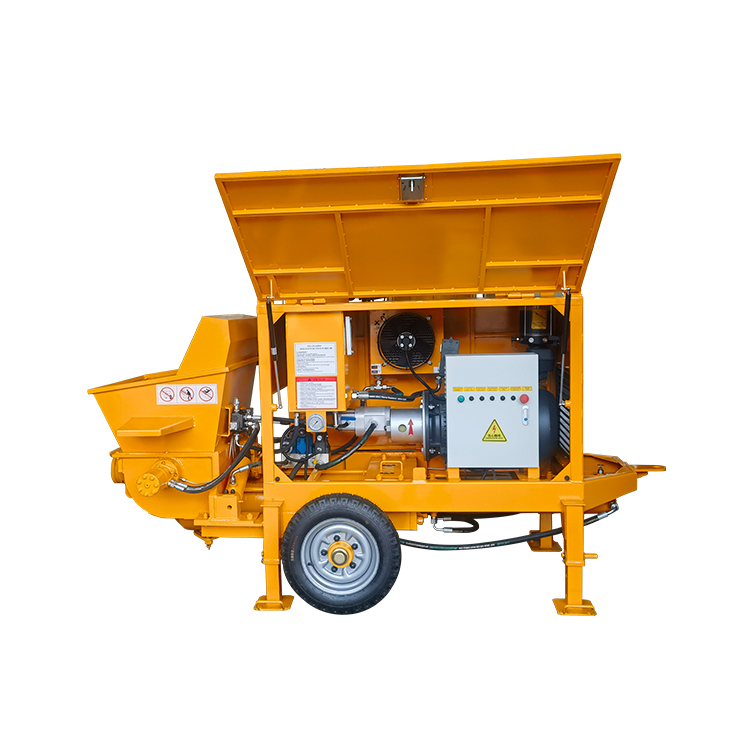

BS20-09-22 concrete pump is suitable for long-distance and high-speed transportation of mortar and fine stone concrete in various construction projects. Its features: The distribution valve adopts S-tube valve, which has high sealing performance. The spectacle plate and floating cutting ring are made of carbide, which has high strength and wear resistance. The cutting ring adopts an automatic compensation gap structure. The control adopts electrical and hydraulic combined control, with electric and hydraulic overload protection functions, anti-pump operation function, pumping speed can be adjusted, centralized lubrication control system, the operating time is automatically controlled by the program, the system is controlled by PLC, it is a fully functional Concrete pump.
Technical Parameters:
Power supply |
380V 50HZ |
Motor Power |
22KW |
Maximum particle size |
≤15mm |
Displacement |
20m3/h |
Delivery pressure |
9/4Mpa |
Horizontal conveying distance |
100m |
Vertical conveying distance |
50m |
Weight |
980KG |
Size |
2650*1200*1430mm |
