Product Description


Features:

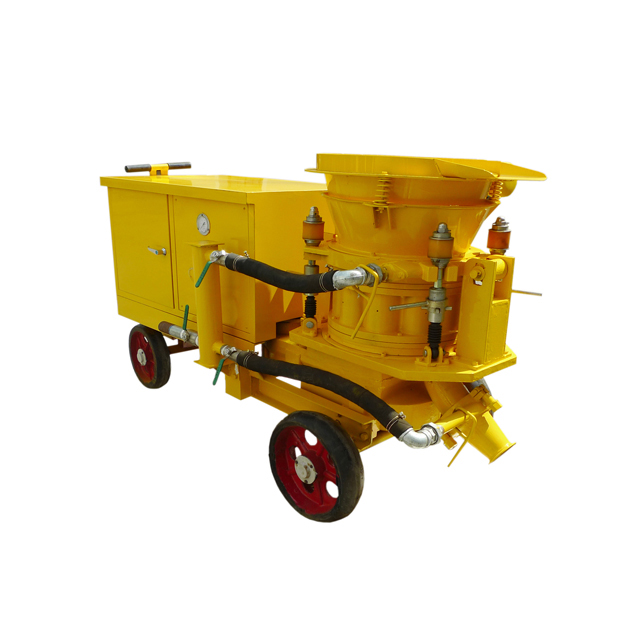

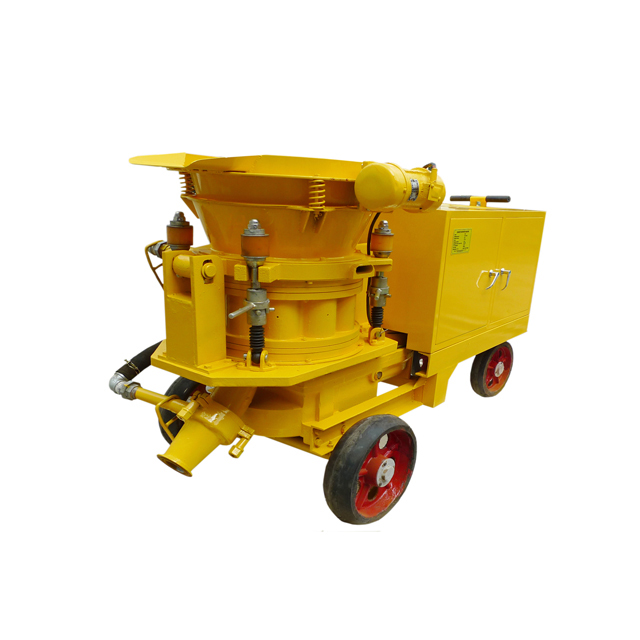

PS rotor type wet spraying machine is a concrete anchor spraying construction equipment. The accelerator delivery is an independent system, accurately controlled by a standard metering pump, and can be adjusted at will. A special rubber sleeve is installed in the upper shell of the cyclone. It vibrates by wind pressure to prevent material from sticking and the inner wall is smooth, which is conducive to the transportation of the mixture. The machine has stable performance, easy operation and maintenance, saves energy consumption, has a long service life, protects the environment and improves the quality of the spray layer.
PS concrete spray machines are widely used in spray concrete operations in tunnels, culverts, railways, water conservancy projects, underground projects, coal mines, high-marsh mines, roadways, water conservancy and electric power projects, slope protection, and shotcrete-anchor support projects.

Technical Parameters:


Power supply

380V 50HZ

Motor Power

7.5KW

Cement/Sand Ratio

1:3-5

Water-cement ratio

≤0.55-0.65

Largest particle

Ø15

Displacement

7m3/h

Working pressure

0.4-0.6Mpa

Air consumption

≥10m3/h

Horizontal conveying distance

30m

Vertical conveying distance

15m

Weight

900KG

Size

2000*800*1100mm
