Inspection well drainage pipeline repair vehicle
Product Description
Features:

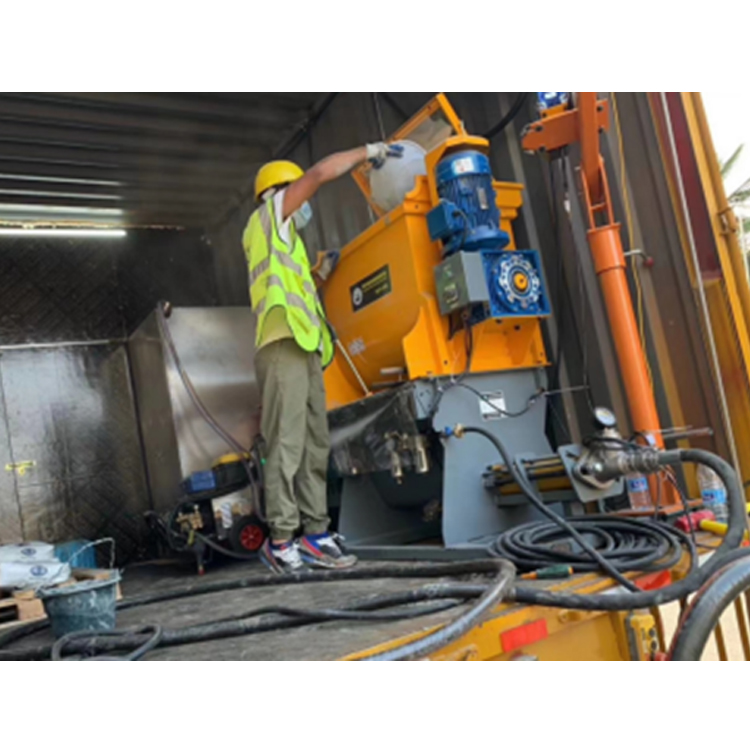

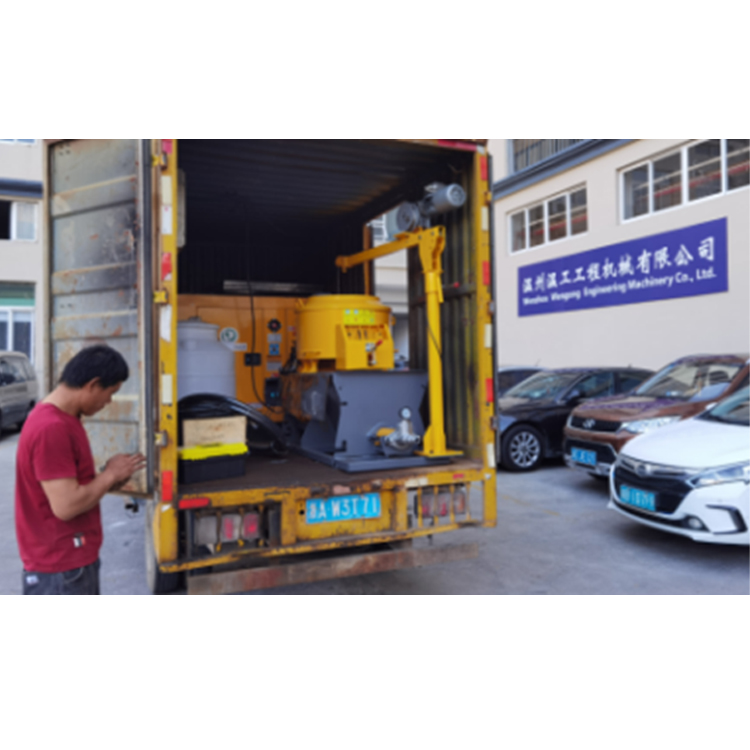

Wengong inspection wells and drainage pipe repair trucks are independent innovations. The products are energy-saving and environmentally friendly, efficient in operation, and built with ingenuity. The vehicle is fully equipped, including a vehicle-mounted well pipe lining sprayer, a telescopic rotating boom, a speed-adjustable lift and an electric or pneumatic rotary nozzle, a pipe lining tractor spraying vehicle, and a lightweight quick-installation spraying and repair combination for inspection wells in green belts. Rack, generator set, water supply system, inspection well sludge grab, high-pressure cleaning machine, dust removal equipment, lighting system, etc.
Model: Chengli brand CL5070XJX6CC
Technical Parameters:
|
Model |
CL5070XJX6CC |
Total mass |
6800KG |
Number of axes |
2 |
|
Chassis model |
EQ1075SJ3CDF |
Fuel type |
Diesel fuel |
Emission Standards |
GB17691-2018國(guó)VI |
|
Van |
Chengli brand |
Curb weight |
6670/6605KG |
Chassis name |
Category II truck chassis |
|
Number of tires |
6 |
Power |
103KW |
|
|
|
Size |
5100，5435，5870，5939，5845，5460，6730*1910，1940，2090*2120，2200，2250，2350 mm |
||||
|
Wheelbase |
2700,2950,3308,3600,3800mm |
||||
|
Tire specifications |
7.00R16,7.00R16LT，7.00R16LT14PR，7.00R16LT16PR， |
||||
Chassis configuration:
It adopts Dongfeng original Dolica chassis, yellow cab (color optional), Yuchai 140 horsepower National VI engine, original double-layer beam, Wanliyang 6-speed gearbox, wheelbase 3308mm, 7.00R16 original steel tires, original Factory ABS, with steering assist, clutch booster, air brake, with heating and cooling air conditioning.

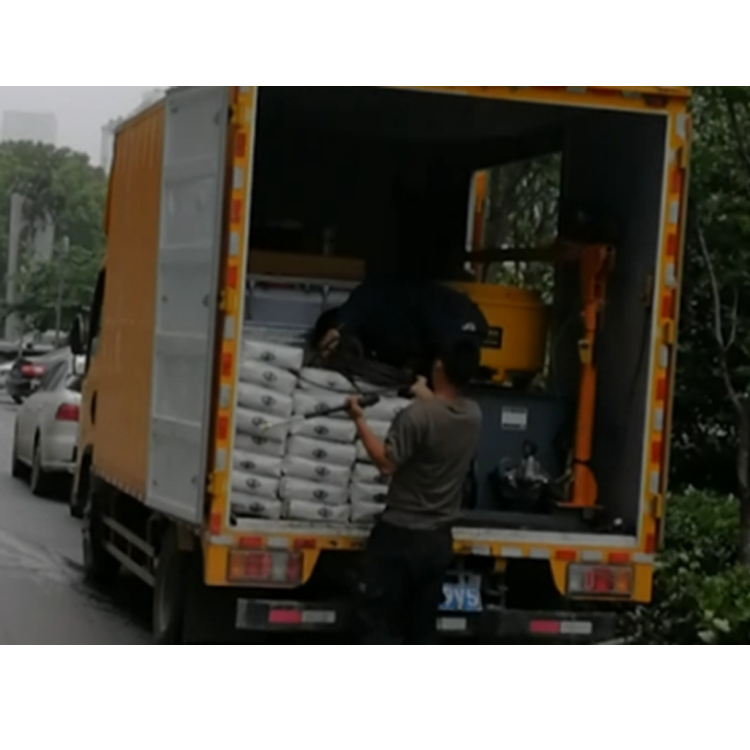

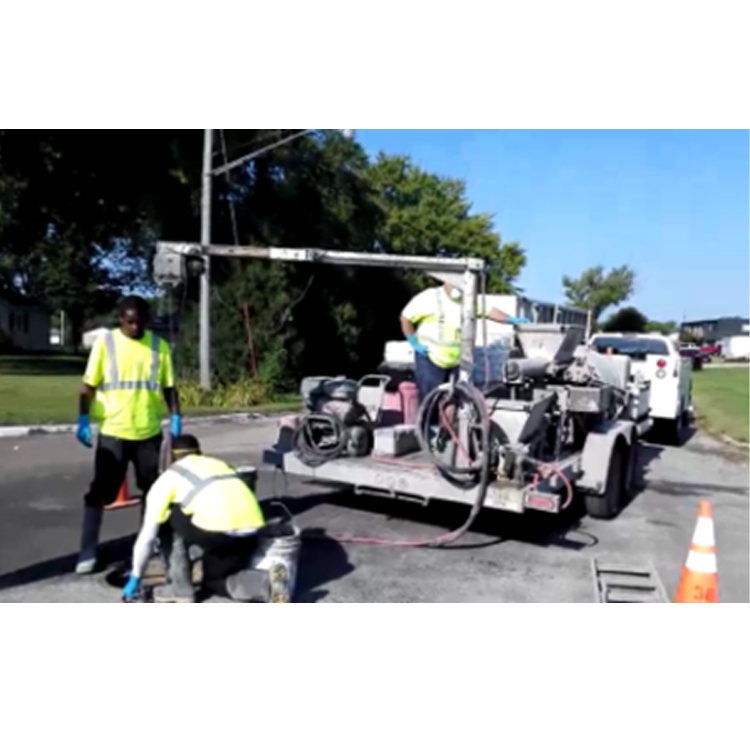

The product is used in mortar spray repair of inspection wells and drainage pipes. It is suitable for trenchless repair and structural repair of various types of drainage pipes and inspection wells of different materials. It has fully automatic rotating centrifugal pouring. The coating is uniform and dense, and the thickness is adjustable. , the lining material can be sprayed on the surface of the wet substrate, with high strength, good corrosion resistance and strong bonding. The thickness of the lining can be freely adjusted according to the inner diameter of the pipe. The repair distance can be up to 200m at a time.
At the same time, Wen Gong is a drainage pipe repair company in municipal construction projects, undertaking various box-type truck modification inspection wells and pipe spray repair truck projects, providing tailor-made solutions.
