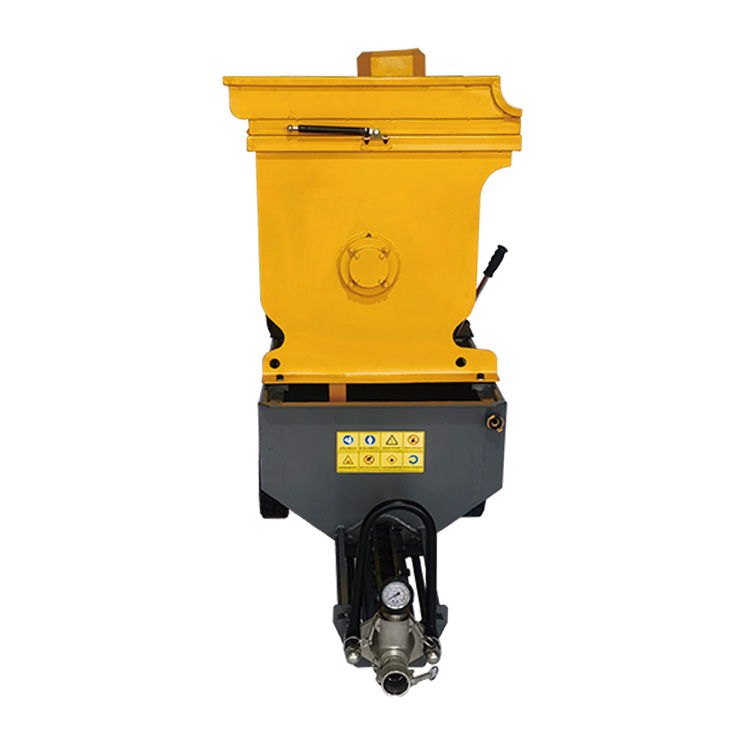

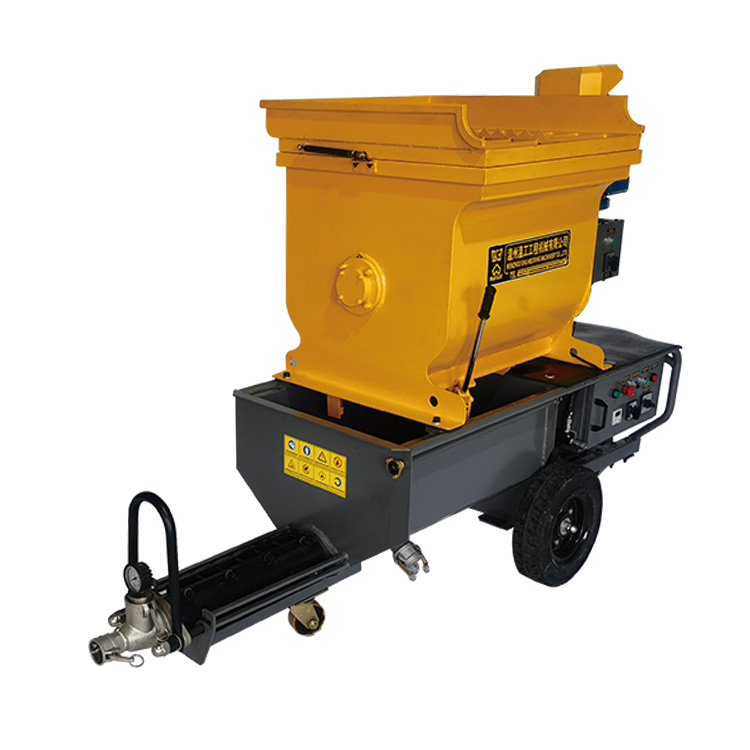

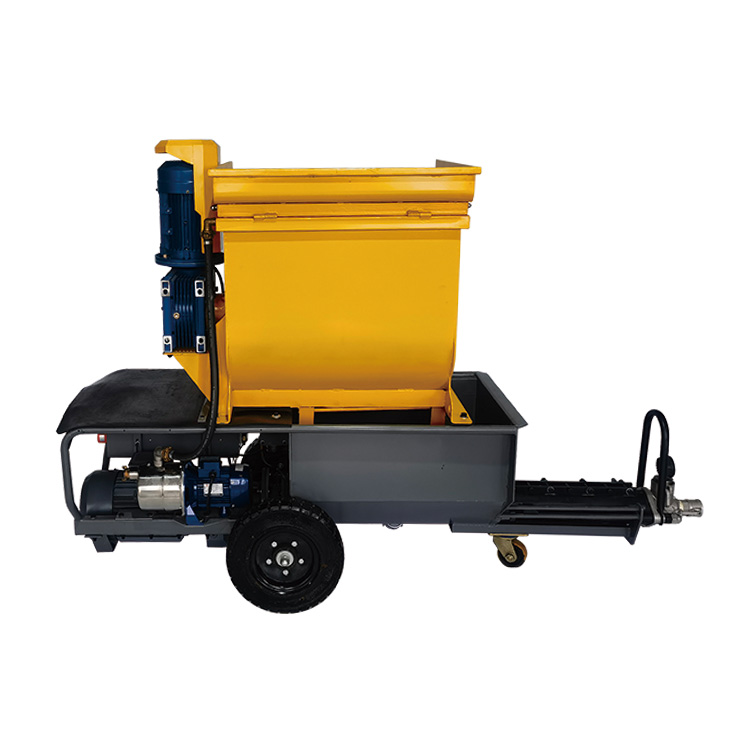

JPZ mobile well pipe lining mortar spraying machine
Product Description
Features:
The JPZ series mobile inspection well and drainage pipe lining mortar spraying machine is remotely controlled by a pressure sensor. It is equipped with a screw pump anti-wear limit control and expansion and contraction adjustment mechanism. It can instantly load and unload the screw pump rotor stator slide mechanism on the job site. To solve the problem of update operation during the operation of screw pump. The working pressure and displacement are stepless or two-speed selective control, suitable for conveying and spraying a variety of polymer slurries.

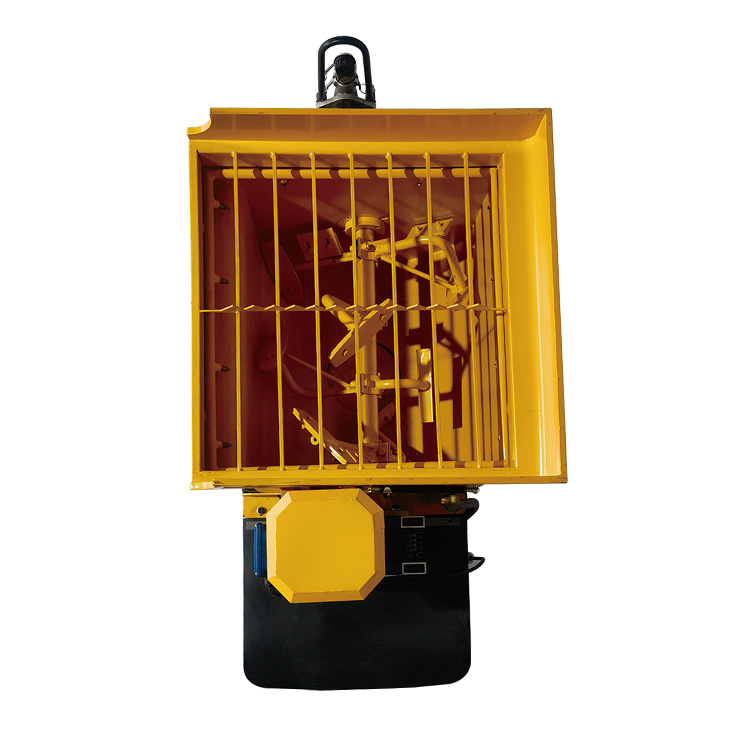

The mixed mortar adopts a forced horizontal mixing device. The independently innovative mixing body is equipped with reverse intermittent spiral stirring blades, which circulate the mortar along the axial and radial directions at a certain angle. The staggered mixing blades are violently flipped and thrown to produce a powerful impact. Radial flow and axial flow enhance the wrapping of particulate aggregates and fully mix them.
The built-in rotary spray water supply mechanism ensures that the mortar does not stick to the inner wall of the mixing body and the mixing blades. Equipped with moving wheels for mobile work on the ground. The products are divided into lightweight models, mechanical variable speed drive models, and large displacement models.
Application fields: It is used for in-situ centrifugal spraying repair (CCCP) of trenchless pipeline linings, and is widely involved in building surface spraying, decoration, mortar transportation, pressure grouting and other engineering fields.
Technical Parameters:
|
Model |
JPZ50 |
JPZ60 |
JPZ70 |
JPZ90 |
|
Power supply |
380V 50HZ |
380V 50HZ |
380V 50HZ |
380V 50HZ |
|
Maximum displacement |
50L/min |
60L/min |
70L/min |
90L/min |
|
Delivery pressure |
30bar |
30bar |
30bar |
30bar |
|
Pumping distance |
60m |
60m |
60m |
100m |
|
Pumping height |
40m |
40m |
40m |
40m |
|
Main motor power |
4 KW |
4.5/5.5 KW |
4.5/5.5 KW |
6.5/8 KW |
|
Mixing capacity |
140L |
140L |
140L |
260L |
|
Stirring motor power |
4KW |
4KW |
4KW |
4KW |
|
Size |
1740*750*1515mm |
2180*750*1515mm |
1980*750*1515mm |
2100*750*1515mm |
|
Weight |
480KG |
520KG |
550KG |
550KG |
