WGB type iron water tank, furnace lining, and intermediate ladle repair unit

Product Description


Features:

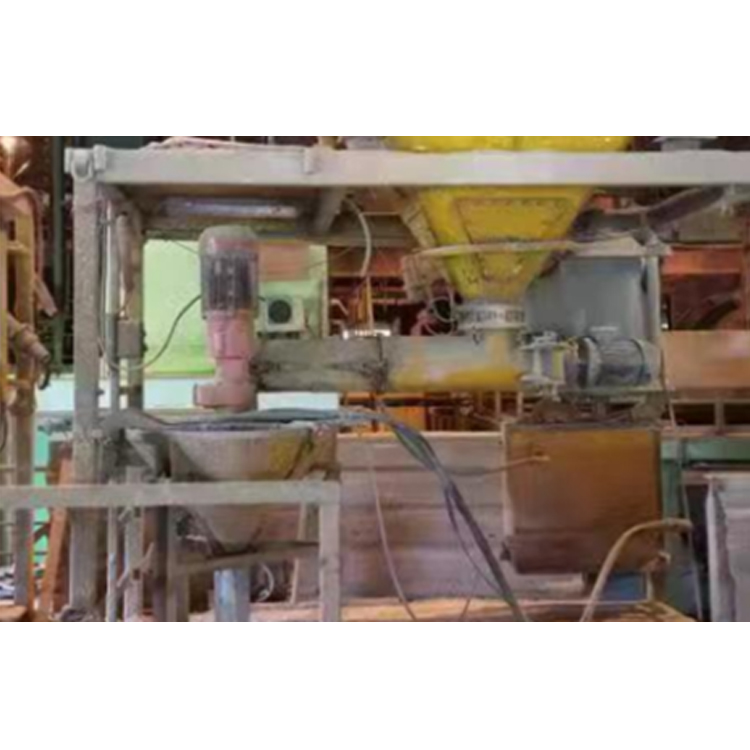

This unit integrates a large-tonnage arch-breaking storage silo, powder metering, automatic water metering, central control system, continuous mixing mixer, mortar pumping spraying system, and gas supply system. It has a compact structure and is easy to operate. It is an ideal choice for the steel smelting industry. It is an essential equipment for spraying and repairing ladles, ladles, and tundishes. The unit is intelligently controlled and has high work efficiency. The pressure, displacement and pumping distance of the spray slurry can be freely adjusted, and it is cost-effective.

Technical Parameters:


Continuous mixer power

5.5KW 380V 50HZ

Mortar pump main motor power

5.5KW 380V 50HZ

Water pump motor power

0.75KW 380V 50HZ

Vibration motor power

0.18KW 380V 50HZ

Storage bag volume

2.5m3

Continuous mixer working pressure

3.6m3/h(Adjustable)

Maximum mortar pumping distance

50m

Mortar pumping pressure

30bar

 Size

2250mm*1700mm*3370mm
