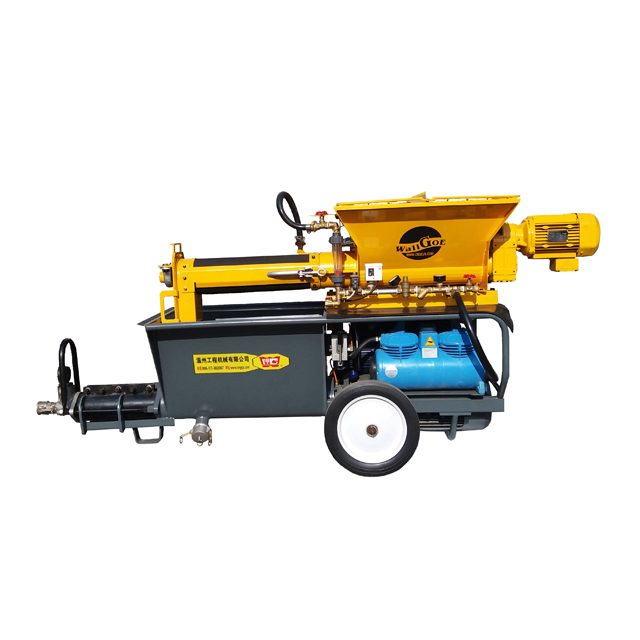

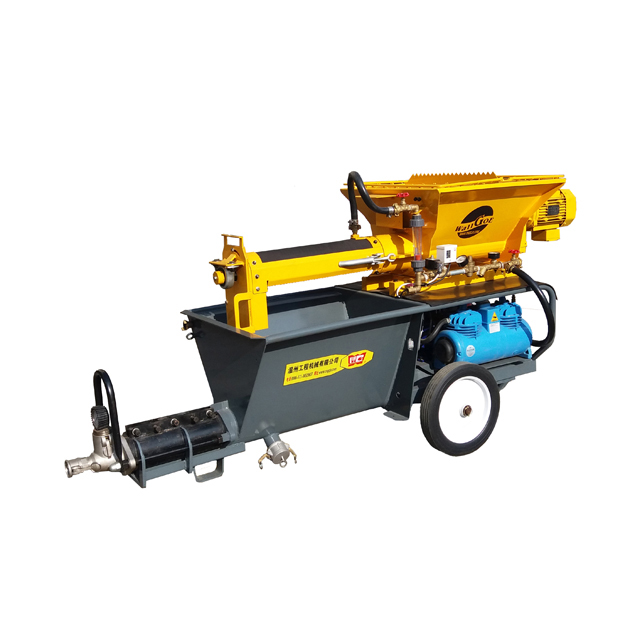

JPW type continuous mixing mortar pump and spraying machine

Product Description


Features:


JPW type continuous mixing mortar pump and spraying machine are integrated into one machine by combining an uninterrupted continuous automatic mixing mixer and a screw type mortar pump assembly. The functions of its screw pump are the same as those of JPL vertical mixing mortar pump and JPZ horizontal mixing mortar pump. The difference is that the continuous mixer is equipped with a stable pressure metering automatic water supply system, an automatic quantitative feeding mechanism, and a modular dual-axis structure. The continuous mixing mechanism realizes uninterrupted continuous automatic operation of the whole machine, saving labor costs and improving work efficiency. The mixing body is made of non-metallic material, which has the effects of pressure resistance, rust prevention and noise elimination.

Technical Parameters:


Model

JPW50

JPW60

JPW70

Power supply

380V 50HZ

380V 50HZ

380V 50HZ

Maximum displacement

50L/min

60L/min

70L/min

Delivery pressure

30bar

30bar

30bar

Pumping distance

60m

60m

60m

Pumping height

40m

40m

40m

Main motor power

4.5/5.5 KW

4.5/5.5 KW

4.5/5.5 KW

Stirring form

Continuous

Continuous

Continuous

Stirring motor power

3KW

3KW

3KW

Machine size

1950*680*108mm

2210*680*1080mm

2050*680*1080mm

Weight

320KG

350KG

350KG
